Electro-Pneumatic Training System 8075-2

Electro-Pneumatic Training System 8075-2

Description

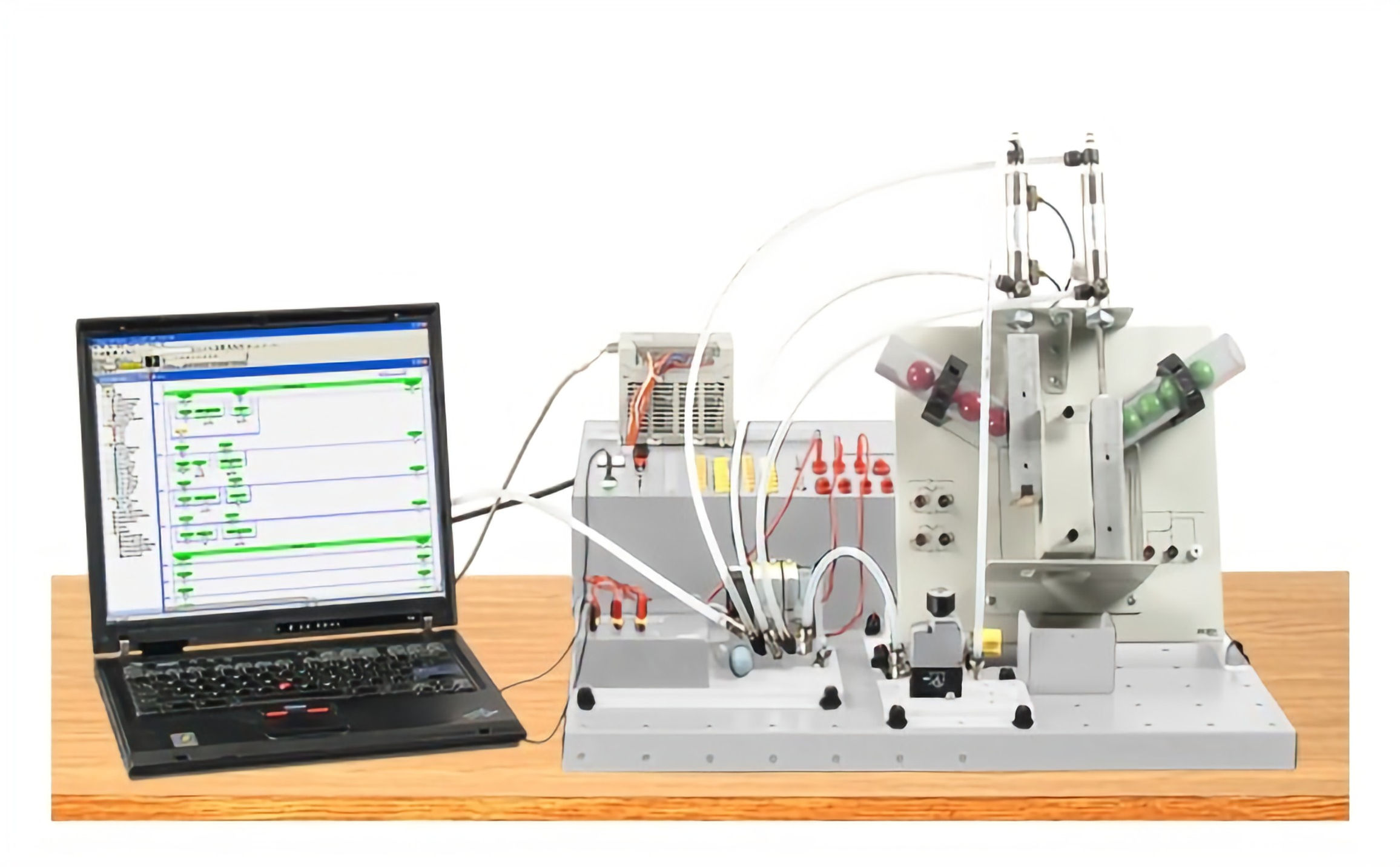

The Electro-Pneumatic Training System uses a PLC to control a variety of pneumatic industrial applications.



Features & Benefits



  • Two double-acting cylinders
  • Two reed switches and mechanical limit switch for PLC feedback
  • Perforated work surface
  • Control valve station featuring single- and double-solenoid valves
  • Applications: stamping, hold and punch, filling process, etc.
  • Fault-insertion capability for troubleshooting
  • Accepts three 24 V dc control signals from the PLC
  • Includes job sheets



List of equipment

QtyDescriptionModel Number
1Pressure Regulator3216
1Electro-Pneumatic Valve Island3217
1Electro-Pneumatic Module3292
1Storage/Work Surface6309
1PLC Applications (Workbook)85250-2
1PLC Applications (Workbook (Instructor))85250-3





Additional equipment required to perform the exercises (Purchased separately)

QtyDescriptionModel Number
1Compressor6410-C
1Conditioning Unit (Single Port)6411-A
